Semi automatic capsule filling machine

Describe:The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc.

  • Model:JTJ -3
  • Manufacturer:
  • Date:2022-09-21
  • Views:3043

Product Category

Related Articles

Detailed Introduction

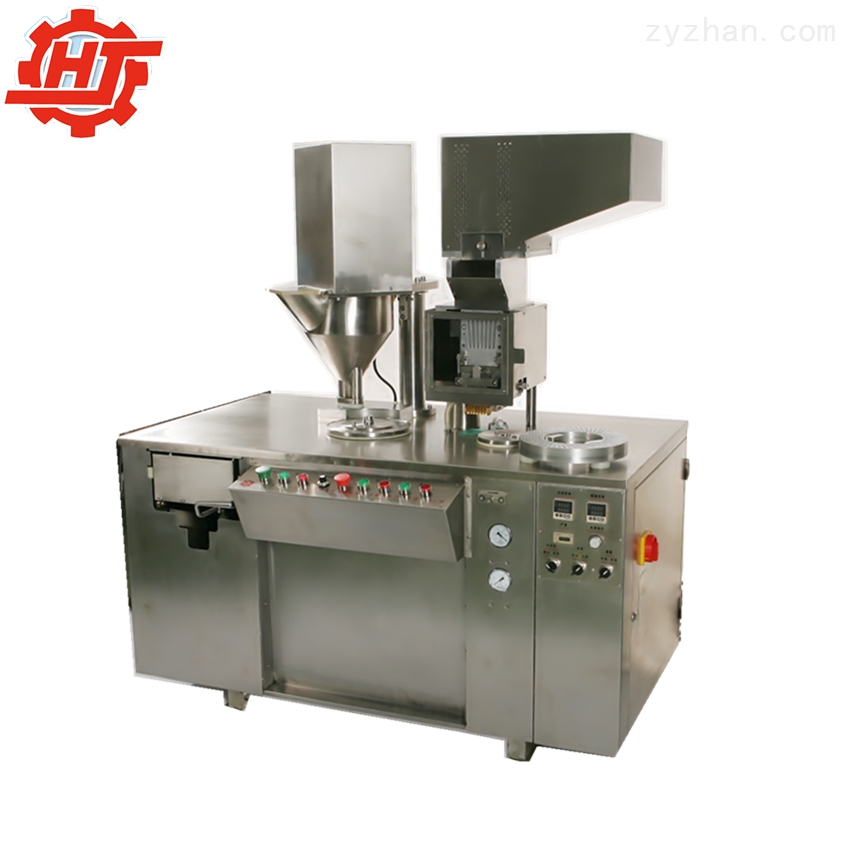

JTJ-3 Semi-automatic Capsule Filling Machine :Description



?

Working priciple :

The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc.
The machine has stepless transduction speed-shift, and electronic automatic counter. And it automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.

Features:
1.All outer casting of the machine including hopper, machine table, etc. and are all made of stainless steel meeting G.M.P. requirements.
2. Infiniy variable speed of filling tablet with independent power and fix point filling that result in accurate dosage..
3.No painting finish on the machine surface thus it can avoid that the paint strip off and mix into the powder, then fill into the capsules.
4.The horizontal closing system is more efficient, safety, and smoothly closes without damaging the capsules.
5.A special design allows for changing mold for different size capsules within 15 minutes easily, simply, and precisely.
6.Simple structure and free of malfunction, easy to maintain and clean.
7.Simple operation, only one operator required, and operating training can done in 10 minutes.
8.Different filling weights can be adjusted without change parts.

Technical Data:

Product No.

JTJ-3

Productivity

6000-40000caps/h

Size of Capsule

000#,00#,0#,1#,2#,3#,4#

Type of Filling

Powder, Granule

Total Power

3.4KW

Net Weight

750Kgs

Dimension

1350X780X1650mm

Accessories

Air Compressor Vacuum Pump

JTJ-3 Semi-automatic Capsule Filling Machine :Details

OPERATIONS: There are 3 stations in the JTJ-3 and they are as follows:

THE FIRST STATION:ORIENTATION OF CAPSULE
The function of first station includes capsule feeding, aligning and insertion into bores of holding ring . Also, vacuum is used for separating capsule cap and body in  first station. After orientation of capsule, capsule cap can stay in upper holding ring and capsule body can stay in lower holding ring.

THE SECOND STATION:POWDER FILLING
Separate the holding ring, put the lower (body) holding ring on the rotary table, pull  the powder hopper over the lower (body) holding ring, then auger inside powder hopper starts to run and fill powder into the capsule body. While Iower holding ring turns one cycle, push powder hopped to its original position.



THE THIRD STATION:CAPSULE CLOSING
Put upper holding ring and lower holding ring  together, then take the holding ring ahead of ejector and aim ejector at the bores of holding ring. Pushing the ejector under the operating table. Then using air cylinder to push ejector and let it press the capsules for closing.Pull out the ejector, and finally pouring the
finished capsules into container.

?

JTJ-3 Semi-automatic Capsule Filling Machine:Samples
  • JTJ-3 Semi- Automatic Filling Machine can use in powder , pellet & granule. Suitable any hard capsule, such as animal capsule , vegetable capsule etc.
